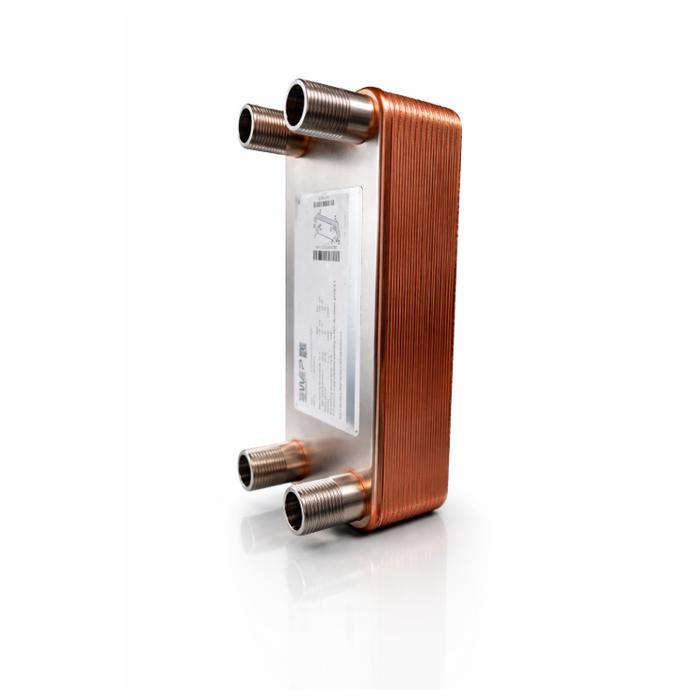

SWEP B10TH Brazed Plate Heat Exchanger – 20 Plate, 1" BSP (B10THx20)
SWEP B10THx20 Brazed Plate Heat Exchanger
The SWEP B10THx20 is part of the SWEP B10TH series of brazed plate heat exchangers, which includes a wide range of plate configurations from 10 to 50 plates for various heating system sizes. The most common plates we stock include B10THx20, B10THx30, and B10THx40, but other configurations are available on request.
Brazed plate heat exchangers provide efficient heat transfer between two separate water circuits while maintaining hydraulic separation. The B10THx20 is suitable for both heat pump systems and traditional boiler systems, ensuring reliable performance across a range of applications.
Temperature Difference (ΔT)
The B10THx20 is suitable for systems with a typical ΔT depending on the application: 5–10°C for heat pump systems or 10–20°C for traditional boiler systems. This ensures efficient heat transfer with minimal temperature drop, helping maintain stable system operation.
Typical Applications
-
Boiler heating systems
-
Air source and ground source heat pump installations
-
Underfloor heating manifolds
-
Thermal store connections
-
Hydraulic separation for multi-circuit heating systems
Other Popular B10TH Plates
Installers often select from the following B10TH plates depending on system size and heat load:
Why Choose SWEP B10TH
SWEP B10TH brazed plate heat exchangers are compact, high-efficiency units suitable for domestic and commercial heating systems. They are widely used by professional heating engineers and installers for reliable heat transfer, hydraulic separation, and easy integration into modern heating systems.
At B.E.E. – The SMART Heating Merchant, we supply high-quality SWEP B10TH heat exchangers suitable for boilers, heat pumps, and renewable heating installations. Our range allows installers to select the correct plate size for their system while providing long-term reliability and performance.
