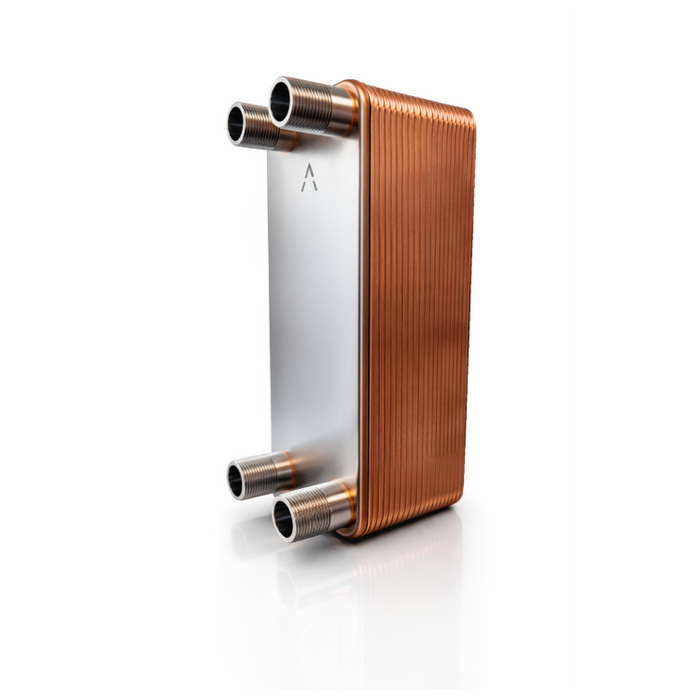

SWEP B10TH Brazed Plate Heat Exchanger – 40 Plate, 1" BSP (B10THx40)
SWEP B10THx40 Brazed Plate Heat Exchanger
The SWEP B10THx40 is part of the SWEP B10TH series of brazed plate heat exchangers, which includes a wide range of plate configurations from 10 to 50 plates for different heating system sizes. The most common plates we stock include B10THx20, B10THx30 and B10THx40, but other configurations are available on request.
Brazed plate heat exchangers provide efficient heat transfer between two separate water circuits while maintaining hydraulic separation. The B10THx40 is suitable for both heat pump systems and traditional boiler systems, making it ideal for larger heating loads and systems requiring higher heat transfer capacity.
Temperature Difference (ΔT)
The B10THx40 is suitable for heating systems operating with a typical temperature difference depending on the application: around 5–10°C for heat pump systems or 10–20°C for traditional boiler systems. This allows efficient heat transfer while maintaining stable system performance.
Typical Applications
• Boiler heating systems
• Air source and ground source heat pump installations
• Underfloor heating systems
• Thermal store connections
• Hydraulic separation between heating circuits
• Larger residential or commercial heating systems
Other Popular B10TH Plates
Installers often select from the following B10TH plates depending on system heat load and flow requirements:
Why Choose SWEP B10TH
SWEP B10TH brazed plate heat exchangers are compact, high-efficiency units designed for modern heating systems. They are widely used by professional heating engineers for reliable heat transfer, hydraulic separation and integration into heating installations.
At B.E.E. – The SMART Heating Merchant, we supply high-quality SWEP B10TH heat exchangers suitable for boilers, heat pumps and renewable heating systems. Our range allows installers to select the correct plate size for their application while ensuring long-term performance and reliability.
Optional Extras for fittings: BEE Brass Flat Faced Union Adapter 28mm x 1 inch Female for press, solder, or compression installation options.
