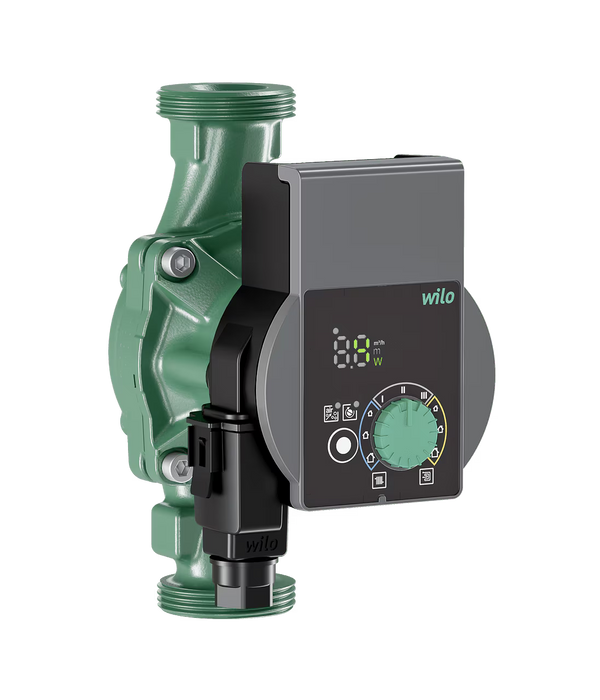

Wilo Yonos PICO 25/1-5 130mm Heating Circulation Pump

The Wilo Yonos PICO 25/1-5 130mm is a high-efficiency heating circulation pump designed for domestic heating systems and replacement applications.

Compact, electronically controlled and easy to set up, the Yonos PICO range is designed to provide efficient circulation while keeping power consumption low.

Key Features

• High-efficiency heating circulation pump
• 130mm port-to-port length
• Electronic pump control
• LED display for set head or speed stage
• Wilo-Connector for quick electrical connection
• Manual pump venting function
• Manual restart function
• Maximum head: 5.1m
• Maximum flow: 3.2m³/h

Technical Details

• Article number: 4215522
• Model: Yonos PICO 25/1-5-130
• Connection: G 1½ / Rp 1 / DN25
• Port-to-port length: 130mm
• Supply: 1~230V, 50/60Hz
• Maximum operating pressure: 10 bar
• Maximum fluid temperature: 95°C

Need help choosing the right Wilo pump? Browse our full Wilo Pumps collection or contact B.E.E. for help with selection.
