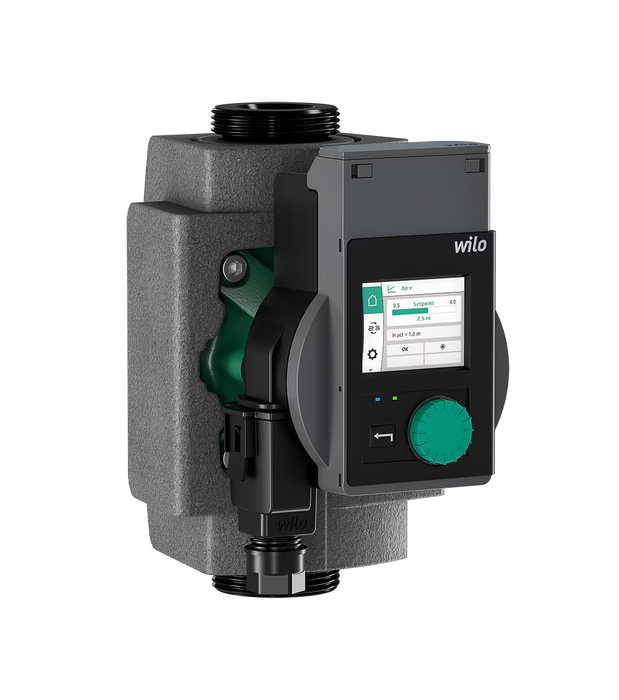

Wilo Stratos PICO 25/0.5-6 130mm Heating Circulation Pump

The Wilo Stratos PICO 25/0.5-6 130mm is a high-efficiency heating circulation pump designed for domestic heating and air-conditioning applications.

It features electronically controlled operation, automatic adjustment to system demand and a compact 130mm port-to-port length, making it suitable for both new installations and replacement applications.

Key Features

• High-efficiency heating circulation pump
• 130mm port-to-port length
• Dynamic Adapt plus automatic control
• Variable differential pressure control
• Constant differential pressure control
• Constant speed mode
• Automatic night setback
• Thermal insulation shell included
• Maximum head: 6.3m
• Maximum flow: 3.7m³/h

Technical Details

• Article number: 4244396
• Model: Stratos PICO 25/0.5-6-130
• Connection: G 1½ / Rp 1 / DN25
• Port-to-port length: 130mm
• Supply: 1~230V, 50/60Hz
• Maximum operating pressure: 10 bar
• Maximum fluid temperature: 110°C

Need help choosing the right Wilo pump? Browse our full Wilo Pumps collection or contact B.E.E. for help with selection.
