SWEP E5TH Brazed Plate Heat Exchanger – 3/4" BSP
The SWEP E5TH brazed plate heat exchanger is a compact, high-performance heat exchanger with 3/4" BSP connections, suitable for heating, renewable and hydronic applications.
Stock & Delivery: We hold our popular SWEP E5TH 20, 30 and 40 plate configurations in stock, with delivery typically within 1–2 working days, subject to availability.
Available from B.E.E. in 20, 30 and 40 plate configurations, allowing you to select the required plate count to suit your system duty, temperatures, flow rates and allowable pressure drop.
Typical applications include heat pump systems, boiler and system separation, primary and secondary circuit separation, underfloor heating and systems using different fluids such as water and glycol.
Available SWEP E5TH Options

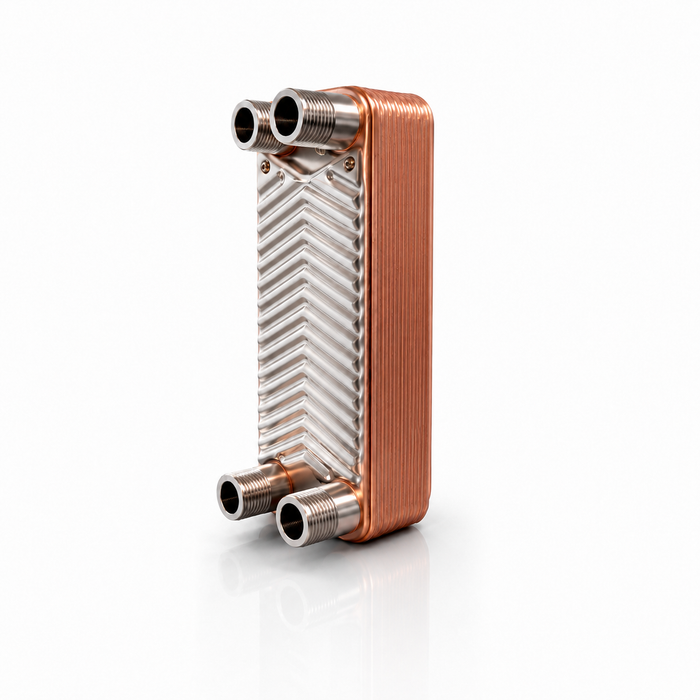

- E5THx20 – 20 Plate – SKU 0145514.0 – Compatible jacket: 41652

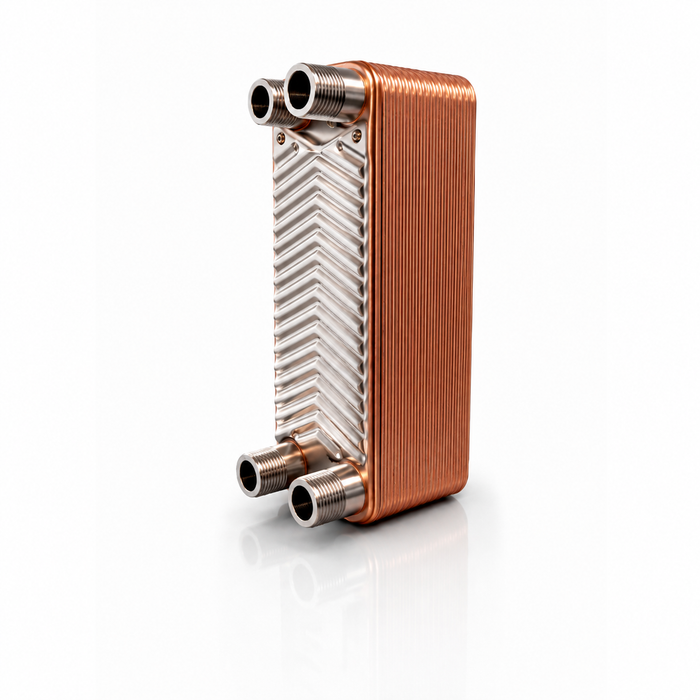

- E5THx30 – 30 Plate – SKU 0145515.0 – Compatible jacket: 41653

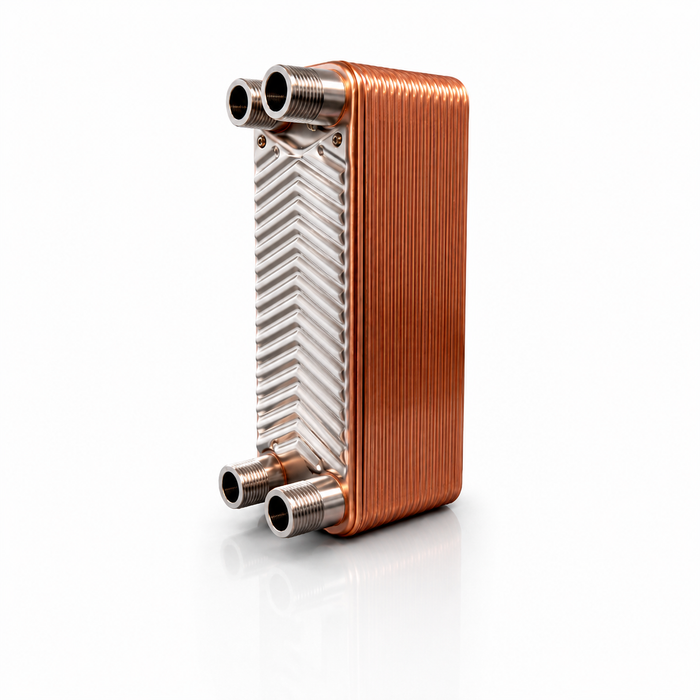

- E5THx40 – 40 Plate – SKU 0163559.0 – Compatible jacket: 41653
Select the required plate count from the options above.
Connections
3/4" BSP connections.
Optional brass flat-faced union adaptors are available for easier connection to copper pipework.
Need Help Choosing the Right Size?
Correct heat exchanger selection depends on the required duty, primary and secondary temperatures, flow rates, fluid types and allowable pressure drop.
You don't need to know every value. Complete our SWEP Heat Exchanger Sizing Enquiry with as much information as you have and B.E.E. will help select the correct heat exchanger for your application.
Submit a SWEP Heat Exchanger Sizing Enquiry →
Technical Downloads
Download the SWEP technical data sheet for your required plate count:
- SWEP E5THx20 – 20 Plate Technical Data
- SWEP E5THx30 – 30 Plate Technical Data
- SWEP E5THx40 – 40 Plate Technical Data
If you need a different SWEP model or plate configuration, contact B.E.E. and we can check availability and help with selection.
