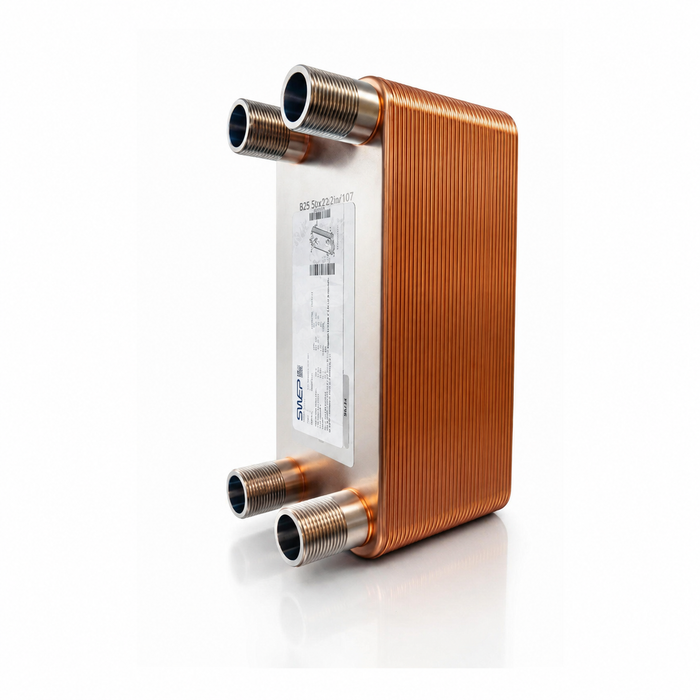

SWEP B12MT Brazed Plate Heat Exchanger – 1 1/4" BSP & 28U

The SWEP B12MT brazed plate heat exchanger is a high-performance heat exchanger suitable for heating, renewable and hydronic applications requiring higher flow rates and larger duties.

Stock & Delivery: We hold the SWEP B12MT 70 Plate configuration in stock, with delivery typically within 1–2 working days, subject to availability. The 40, 50 and 60 Plate configurations are typically available within 5–7 working days.

The B12MT range is available from B.E.E. in 40, 50, 60 and 70 plate configurations, allowing the plate count to be selected to suit the required duty, operating temperatures, flow rates and allowable pressure drop.

Typical applications include boiler and system separation, heat pump systems, primary and secondary circuit separation, heating and cooling systems and applications using different fluids such as water and glycol.

Available SWEP B12MT Options

• B12MTx40 – 40 Plate – SKU 098314.0 – Compatible jacket: 41659 – Typically 5–7 working days

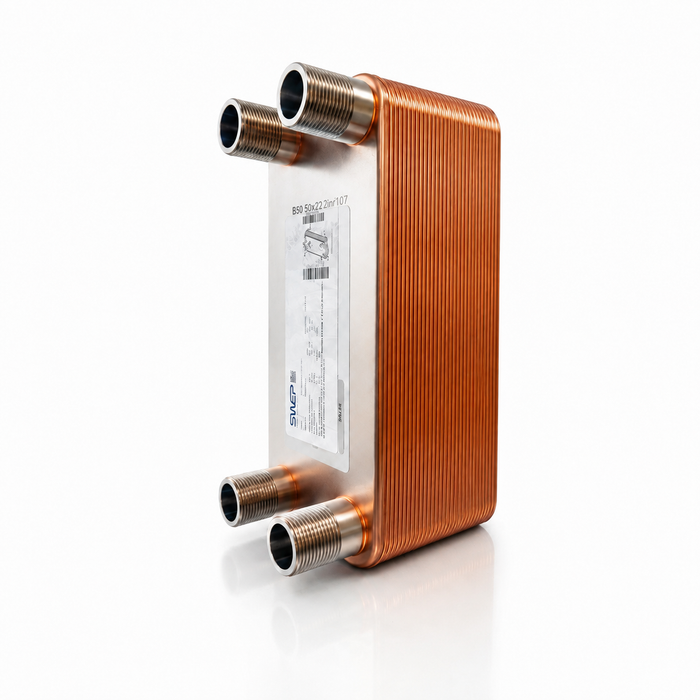

• B12MTx50 – 50 Plate – SKU 098315.0 – Compatible jacket: 41660 – Typically 5–7 working days

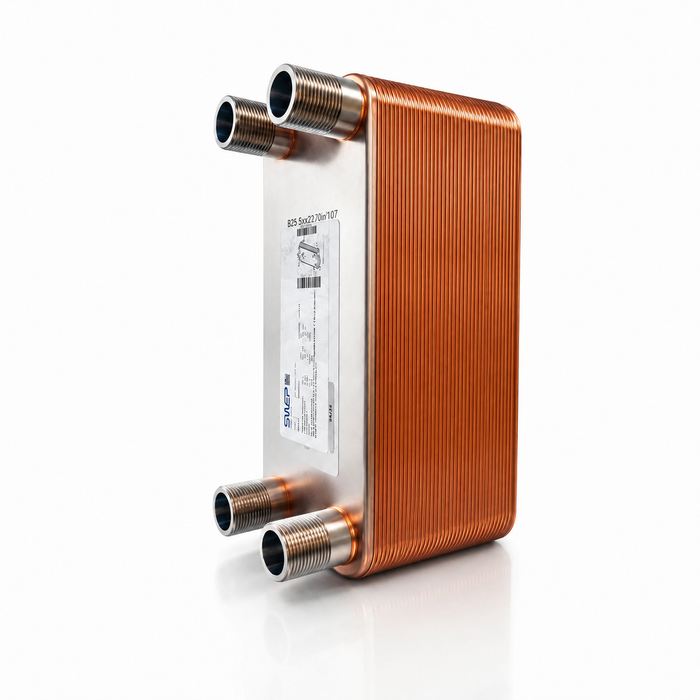

• B12MTx60 – 60 Plate – SKU 098316.0 – Compatible jacket: 41660 – Typically 5–7 working days

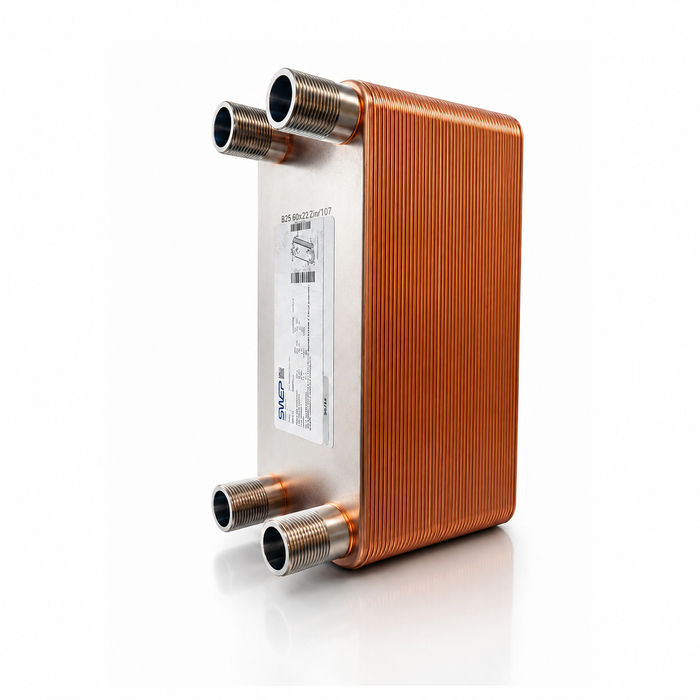

• B12MTx70 – 70 Plate – SKU 0169021.0 – Compatible jacket: 41661 – Stocked by B.E.E.

Select the required plate count from the options above.

Connections

1 1/4" threaded connection / 28U solder connection.

The connection arrangement provides flexibility when integrating the heat exchanger into different pipework systems.

Need Help Choosing the Right Size?

Correct heat exchanger selection depends on the required duty, primary and secondary temperatures, flow rates, fluid types and allowable pressure drop.

You don't need to know every value. Complete our SWEP Heat Exchanger Sizing Enquiry with as much information as you have and B.E.E. will help select the correct heat exchanger for your application.

Submit a SWEP Heat Exchanger Sizing Enquiry →

Technical Downloads

Download the SWEP technical data sheet for your required plate count:

• SWEP B12MTx40 – 40 Plate Technical Data
• SWEP B12MTx50 – 50 Plate Technical Data
• SWEP B12MTx60 – 60 Plate Technical Data
• SWEP B12MTx70 – 70 Plate Technical Data

If you need a different SWEP model or plate configuration, contact B.E.E. and we can check availability and help with selection.
