IntaDrain Combined Anti-Tamper Isolation & Drain Valve

IntaDrain Combined Anti-Tamper Isolation & Drain Valve

The IntaDrain combined anti-tamper isolation and drain valve provides a compact all-in-one connection for expansion vessels, helping to simplify installation, servicing and replacement.

Each valve combines an anti-tamper isolation valve, a rotatable drain-off valve and a G¾ swivel vessel connection, reducing the need for additional fittings and pipework around the expansion vessel.

Key Features

• Combined expansion vessel isolation and drain valve
• Anti-tamper isolation valve
• Rotatable drain-off valve for easier servicing
• G¾ swivel connection to expansion vessel

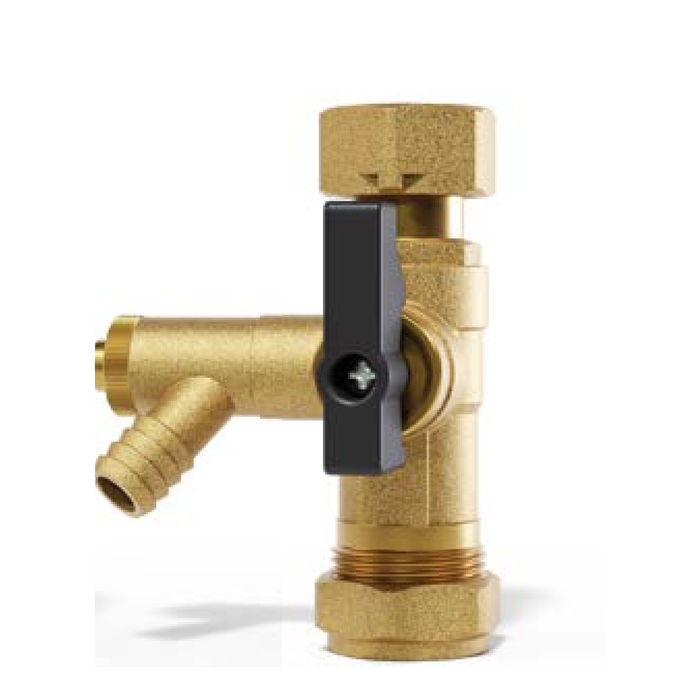

• Available in 22mm and 28mm compression connections

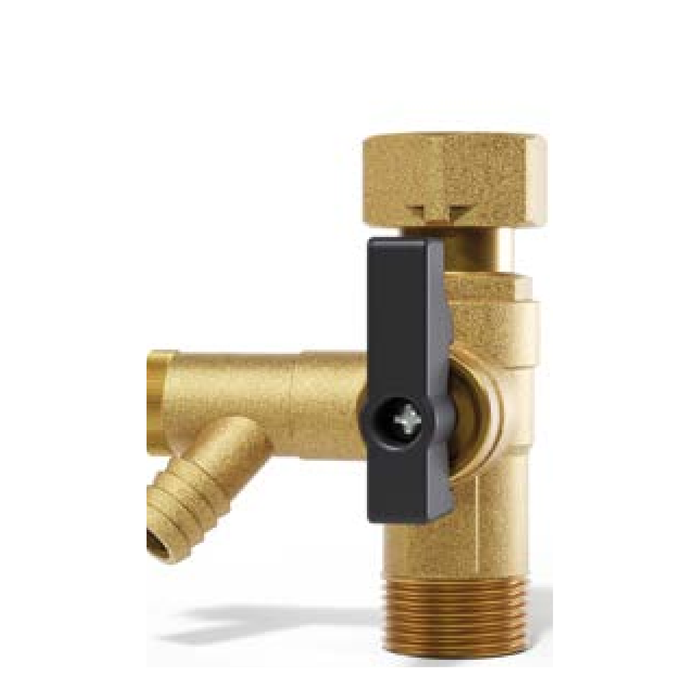

• Available in ¾" and 1" male threaded connections
• Compact design helps reduce additional pipework and fittings
• Suitable for potable systems
• Maximum static pressure: 16 bar
• WRAS approved

Available Models

Please select the required circuit connection from the options above.

Technical Information

View the official IntaDrain Technical Datasheet

Need help choosing the right expansion vessel connection? Contact B.E.E. and we'll be happy to help.
