SKU KTSSK34NB
Inta Intafil Combi Sealed System Kit
by Intatec
Original price
-
Original price
Original price
£41.08 inc. VAT
-
Current price

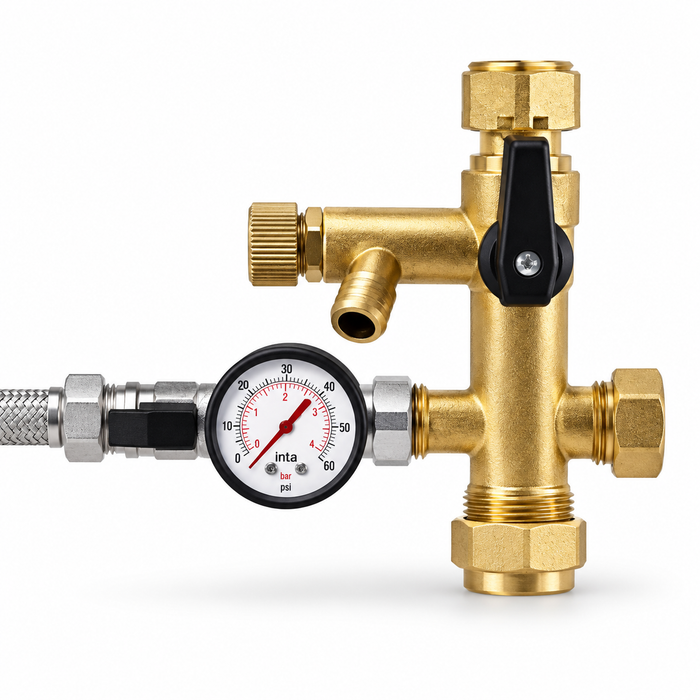

Inta Intafil Combi Sealed System Kit
The Intafil Combi is a compact all-in-one sealed system kit designed to simplify installation, filling and future servicing of heating expansion vessels.
It combines the filling loop, pressure gauge, expansion vessel isolation and drain arrangement into a single assembly, helping to reduce additional pipework, fittings and installation time.
Key Features
- 22mm direct connection to the heating circuit
- G¾ swivel connection to the expansion vessel
- WRAS-approved filling loop and pressure gauge
- Anti-tamper isolation valve
- Rotatable drain-off valve for easier vessel servicing
- G½ connection for optional safety relief valve
- Allows the expansion vessel to be isolated and drained without draining the complete heating system
- Suitable for heating systems including air source heat pump installations
- Suitable for use with up to 50% glycol solution
- Maximum static pressure: 16 bar
- Maximum temperature: 85°C
Available Models
| Product Code | Configuration |
|---|---|
| KTSSK34NB | Filling Loop & Drain – No Bracket |
| KTSSK34 | Filling Loop & Drain – With Bracket |
| KTSSK34SRVNB | Filling Loop, Drain & Safety Relief Valve – No Bracket |
| KTSSK34SRV | Filling Loop, Drain & Safety Relief Valve – With Bracket |
Please select the required kit configuration from the options above.
Technical Information
View the official Intafil Combi Technical Datasheet
Need help choosing the correct sealed system kit? Contact B.E.E. and we'll be happy to help.
