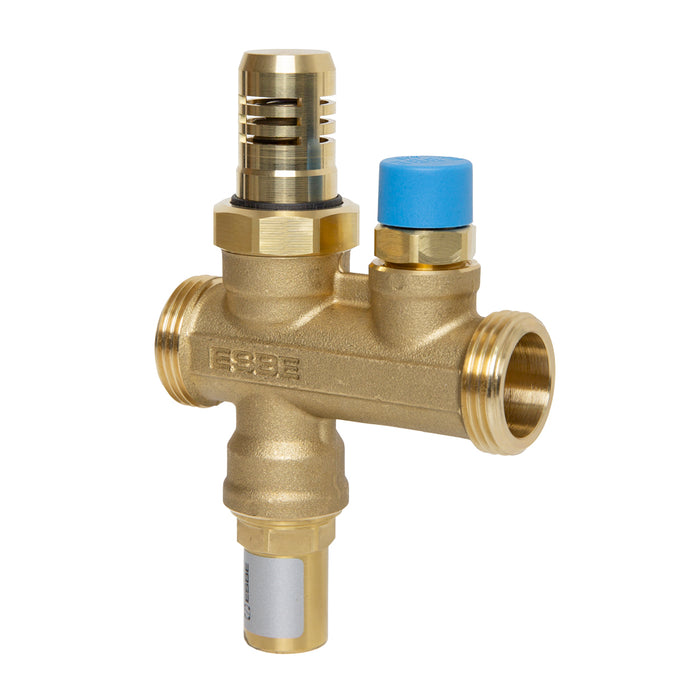

ESBE VTN202 Anti-Freeze Valve – G1 & G1¼

ESBE VTN202 Anti-Freeze Valve

The ESBE VTN202 is an anti-freeze safety valve designed to protect monobloc heat pump systems from frost damage during low-temperature conditions or power failure.

The VTN200 series incorporates ambient temperature sensing, making it particularly suitable for heat pump systems that operate in both heating and cooling. This prevents unnecessary discharge during warm weather when low water temperatures are caused by cooling operation rather than freezing conditions.

Key Features

• Designed for monobloc air-to-water heat pump systems
• Suitable for heating and cooling applications
• Ambient temperature sensing
• Opening temperature: approximately 3°C
• Closing temperature: approximately 4°C
• Ambient activation temperature: approximately 5°C
• Maximum discharge flow: 2 l/min at 3 bar differential pressure
• PN10 pressure class
• Maximum working pressure: 10 bar
• Working temperature range: 0–90°C
• External threaded connections
• Maintenance-free operation

Available Models

Please select the required connection size from the options above.

Need help choosing the correct ESBE anti-freeze valve? Contact B.E.E. and we'll help you find the right option for your heat pump installation.
