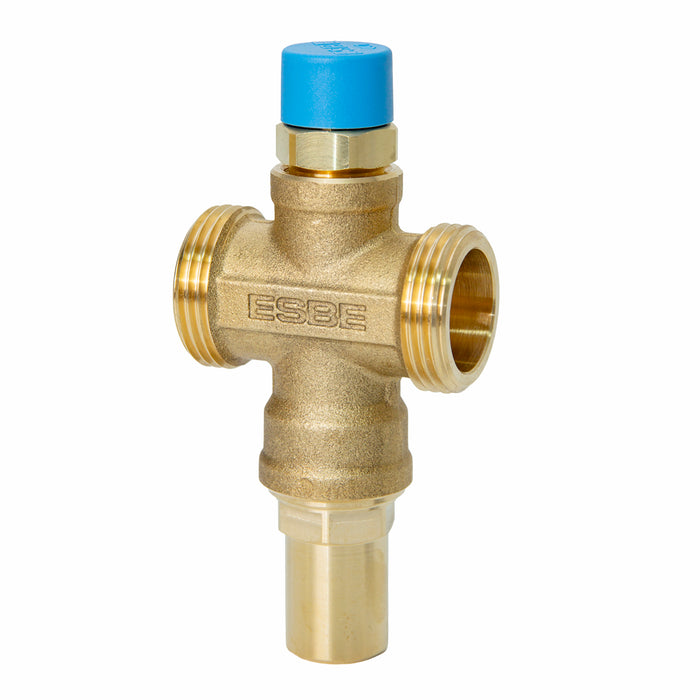

ESBE VTN102 Anti-Freeze Valve – G1 & G1¼
ESBE VTN102 Anti-Freeze Valve
The ESBE VTN102 is an automatic anti-freeze safety valve designed to help protect air-to-water monobloc heat pumps and associated pipework from freezing during cold weather and power outages.
When the system water temperature falls below approximately 3°C, the valve automatically begins to discharge cold water, allowing warmer water from the system to reach the valve. As the water temperature rises to approximately 4°C, the valve closes again automatically.
This helps protect the heat pump and plate heat exchanger from freeze damage without requiring the valve to be manually reset.
Key Features
- Automatic frost protection for monobloc heat pump systems
- Opens at approximately 3°C
- Closes again at approximately 4°C
- Maximum discharge flow: 2 l/min at 3 bar ΔP
- Media temperature range: 0–90°C
- PN10 pressure rating
- Brass valve body with precise wax-element control
- Maintenance-free under normal operating conditions
Available Sizes
- G1 – DN25 – Article 35100100
- G1¼ – DN32 – Article 35100200
The VTN102 uses external threaded connections and can be installed vertically within ±45°.
Please select the required connection size from the options above.
