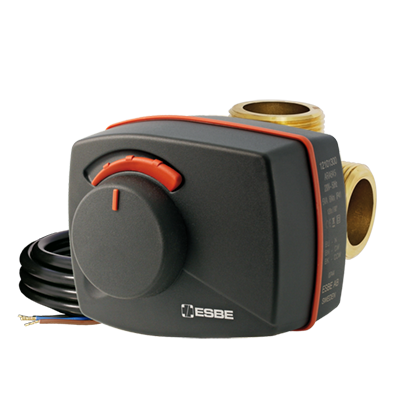

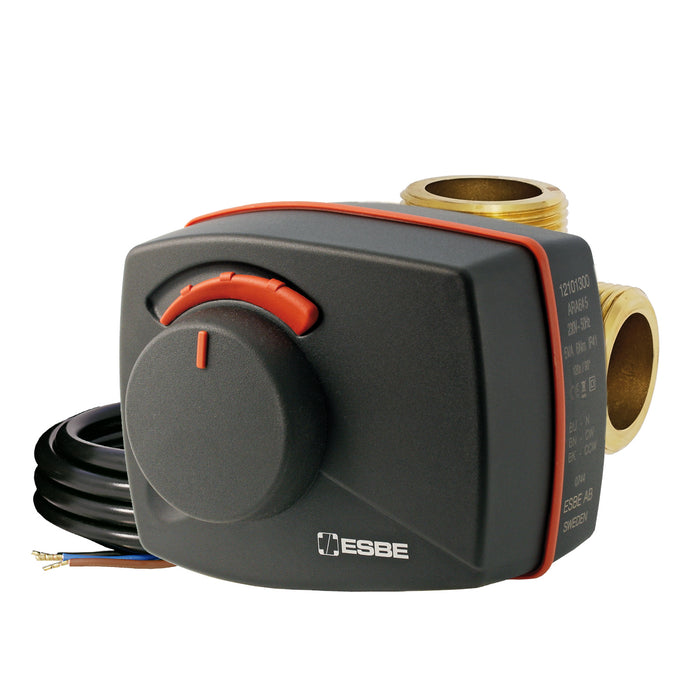

ESBE VRG130 + ARA661 3-Point Actuated Mixing Valve Set
ESBE VRG130 + ARA661 3-Point Actuated Mixing Valve Set
The ESBE VRG130 + ARA661 is a complete rotary mixing valve and actuator set, supplied together for straightforward installation in heating and cooling systems.
The set combines an ESBE VRG130 series 3-way rotary mixing valve with the ARA661 230V 3-point actuator.
Key Features
- Complete valve and actuator set
- 3-way rotary mixing valve
- ARA661 actuator included
- 230V AC supply
- 3-point SPDT control
- 6Nm actuator torque
- 120 second running time over 90°
- Available with internal or external threaded connections
- Suitable for heating and cooling applications
Available Models
| Article No. | Valve | DN | Kvs | Connection |
|---|---|---|---|---|
| 13028800 | VRG131 | DN32 | 16 | Rp 1¼" |
| 13028900 | VRG131 | DN40 | 25 | Rp 1½" |
| 13029000 | VRG131 | DN50 | 40 | Rp 2" |
| 13029100 | VRG132 | DN25 | 10 | G 1¼" |
Please select the required valve size and connection from the options above.
Availability Note
We normally stock the ESBE ARA662 actuator, which is equivalent to the ARA661 but includes a removable volt-free auxiliary cable. If you need this product urgently, please contact us and we can advise the quickest available option.
Not Sure Which ESBE Valve Size You Need?
Use our ESBE Valve Sizing & Selection Tool to calculate the required flow rate and narrow down the correct valve size and Kvs for your application.
Need help choosing the correct valve or actuator? Contact B.E.E. and we'll help you find the right option for your system.
