SKU 31420100

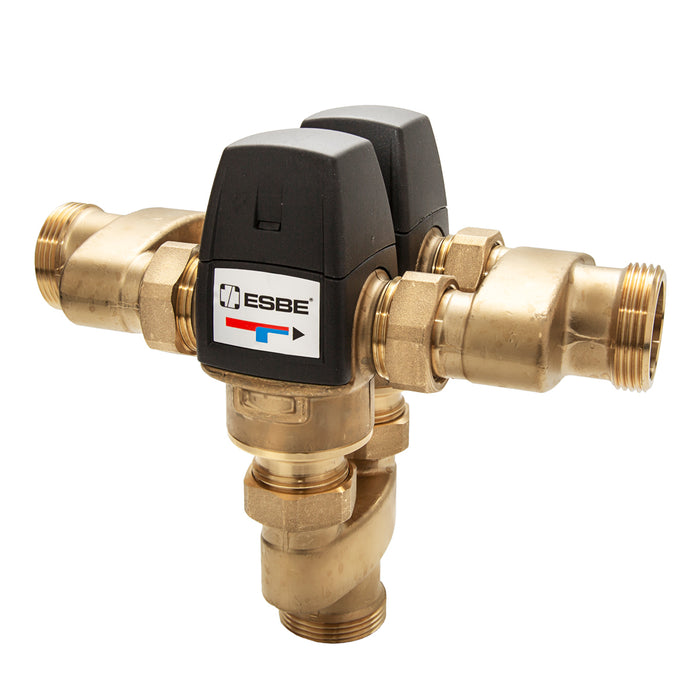

ESBE UPTT522 High-Flow Thermostatic Mixing Valve Unit
by ESBE
Original price
-
Original price
Original price
£404.46 inc. VAT
-
Current price
ESBE UPTT522 High-Flow Thermostatic Mixing Valve Unit
The ESBE UPTT522 is a high-flow thermostatic mixing valve unit designed for larger domestic hot water systems where accurate temperature control is required across both high and low flow rates.
The unit combines two thermostatic mixing valves in parallel to provide increased flow capacity while maintaining fast and accurate temperature regulation. It is suitable for applications including apartment buildings, schools, commercial buildings, bath and shower facilities and domestic hot water systems with hot water circulation.
Key Features
- High-flow thermostatic mixing valve unit
- Anti-scald function
- Suitable for larger domestic hot water systems
- Suitable for hot water circulation systems
- Kvs 6.1
- G1¼ external threaded connections
- PN10 pressure class
- Maximum media temperature 95°C
- DZR brass construction
- Non-electrical thermostatic operation
Available Models
| Article No. | Temperature Range | Kvs | Connection |
|---|---|---|---|
| 31420100 | 20–43°C | 6.1 | G1¼ |
| 31420200 | 45–65°C | 6.1 | G1¼ |
| 31420300 | 50–75°C | 6.1 | G1¼ |
Please select the required temperature range from the options above.
Need help choosing the correct ESBE valve? Contact B.E.E. and we'll help you find the right option for your system.
