SKU 61222100
ESBE GFF211 Fixed Temperature Circulation Unit – DN25 & DN32
by ESBE
Original price
-
Original price
Original price
£343.98 inc. VAT
-
Current price

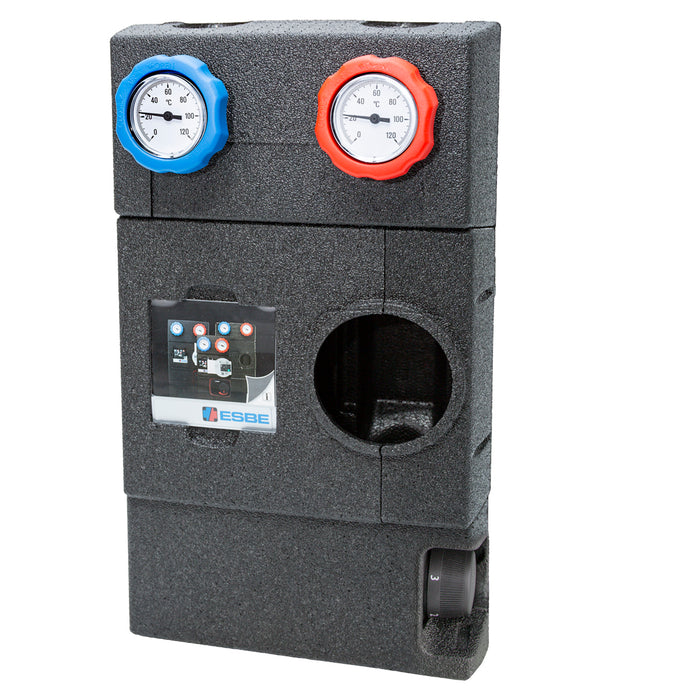

ESBE GFF211 Fixed Temperature Circulation Unit
The ESBE GFF211 is a fixed-temperature circulation mixing unit designed for heating circuits where accurate and consistent flow temperature control is required.
The unit incorporates a thermostatic mixing valve and is supplied without a circulation pump, allowing a compatible 180mm pump to be selected separately.
Key Features
- Fixed-temperature circulation mixing unit
- Adjustable temperature range: 20–55°C
- Supplied without circulation pump
- Suitable for 180mm pumps
- Integrated 3-way thermostatic mixing valve
- Two shut-off valves with integrated thermometers
- Integrated check valve
- High-grade EPP insulation shell
- Adjustable wall bracket
- Pressure class PN10
- Suitable for heating water and water/glycol mixtures up to 50%
Available Models
| Article No. | Size | System Connection | Pump Connection | Temperature Range |
|---|---|---|---|---|
| 61222100 | DN25 | G1" | G1½" | 20–55°C |
| 61222200 | DN32 | G1¼" | G1½" | 20–55°C |
Please select the required size from the options above.
Need help choosing the correct ESBE circulation unit? Contact B.E.E. and we'll help you find the right option.
