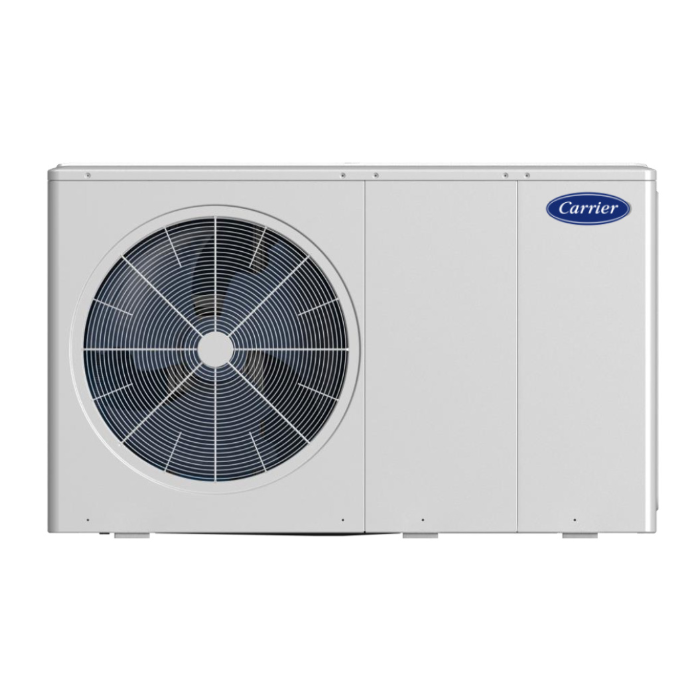

Carrier AquaSnap 30AWH-M 012H R32 Monobloc Air-to-Water Heat Pump – 12kW
The Carrier AquaSnap 30AWH-M 012H is a 12kW R32 monobloc air-to-water heat pump designed for domestic and light-commercial heating applications.
Suitable for space heating, cooling and domestic hot water when installed as part of a correctly designed system, its monobloc construction keeps the refrigerant circuit contained within the outdoor unit, helping to simplify installation.
The AquaSnap 012H can be used as a stand-alone heat source, within a fully electric heating system or as part of a hybrid arrangement alongside another heat generator.
A wired heat pump controller is included as standard, providing access to heating, cooling, domestic hot water, scheduling and installer configuration settings. The Carrier REC10MH remote controller is available as an optional extra.
Free UK mainland delivery is included.
Key features
- 12.10kW heating output at A7/W35
- R32 monobloc air-to-water heat pump
- Suitable for heating, cooling and domestic hot water applications
- Wired heat pump controller included as standard
- Heating, cooling, DHW and scheduling functions available through the controller
- Carrier REC10MH remote controller available as an optional extra
- 230V single-phase electrical supply
- A+++ energy efficiency class at 35°C
- A++ energy efficiency class at 55°C
- Suitable for stand-alone, fully electric and hybrid systems
- Multiple units can be connected in cascade where correctly designed
- MCS accredited
- Seven-year warranty, subject to Carrier’s terms and conditions
Suitable applications
The Carrier AquaSnap 012H may be suitable for new-build and retrofit heating systems, subject to correct heat-loss calculations, system design and confirmation that the unit meets the required duty.
- Domestic heating systems
- Underfloor heating
- Low-temperature radiator systems
- Fan coil units and water cassettes
- Domestic hot water production with a suitable heat-pump cylinder
- Fully electric heating systems
- Hybrid systems incorporating another heat source
- Light-commercial applications
Please check the available heating output at the required outdoor and water temperatures against the design requirements of the installation.
Technical specification
| Manufacturer | Carrier |
| Range | AquaSnap 30AWH-M |
| Model | 30AWH-M 012H |
| Product type | Monobloc air-to-water heat pump |
| Heating output | 12.10kW at A7/W35 |
| COP at A7/W35 | 4.95 |
| SCOP at W35 | 4.81 |
| Heating output at A7/W45 | 12.30kW |
| COP at A7/W45 | 3.70 |
| Heating output at A7/W55 | 11.90kW |
| COP at A7/W55 | 3.05 |
| SCOP at W55 | 3.45 |
| Heating output at A2/W35 | 9.20kW |
| Heating output at A-7/W35 | 10.00kW |
| Heating output at A-7/W55 | 9.80kW |
| Refrigerant | R32 |
| Refrigerant GWP | 675 |
| Energy efficiency class at 35°C | A+++ |
| Energy efficiency class at 55°C | A++ |
| Sound pressure level | 53dB(A) |
| Sound power level | 65dB(A) |
| Electrical supply | 230V / single phase / 50Hz |
| Standard controller | Wired heat pump controller included |
| Controller functions | Heating, cooling, domestic hot water, scheduling and installer configuration |
| Optional control | Carrier REC10MH remote controller |
| Dimensions | 1385mm wide × 458mm deep × 523mm high |
| MCS status | MCS accredited |
| Warranty | Seven years, subject to Carrier’s terms and conditions |
| Delivery | Free UK mainland delivery |
Performance at different operating conditions
| Test condition | Heating output | COP |
|---|---|---|
| A7/W35 | 12.10kW | 4.95 |
| A7/W45 | 12.30kW | 3.70 |
| A7/W55 | 11.90kW | 3.05 |
| A2/W35 | 9.20kW | 3.90 |
| A2/W45 | 10.60kW | 3.00 |
| A2/W55 | 11.30kW | 2.50 |
| A-7/W35 | 10.00kW | 3.00 |
| A-7/W45 | 10.20kW | 2.40 |
| A-7/W55 | 9.80kW | 2.05 |
Other sizes in the Carrier AquaSnap range
- Carrier AquaSnap 30AWH-M 004H – 4kW
- Carrier AquaSnap 30AWH-M 006H – 6kW
- Carrier AquaSnap 30AWH-M 008H – 8kW
- Carrier AquaSnap 30AWH-M 010H – 10kW
Typical system arrangement
The diagram below shows an example full-electric installation using a Carrier AquaSnap heat pump for underfloor heating and domestic hot water production.
Example Carrier AquaSnap full-electric system arrangement with underfloor heating and domestic hot water.
Please note: This is an example system layout only. The wired heat pump controller is included as standard; other ancillary components shown are not necessarily included with the heat pump. The final hydraulic arrangement should be designed to suit the requirements of the installation.
Downloads
Download the Carrier AquaSnap 30AWH-M Product Brochure
Need help with this product?
Please contact us for product information, availability or a quotation. Technical support is available, and we can also assist with compatible cylinders, buffers, heat exchangers, pump groups and other system components.
