1 x Viessmann ViCare Smart Home radiator thermostat thermostat head ZK03840
Please call to check availability before ordering Live Chat / 01985 850982
Note : - The current Lead time from Germany is 10-15 Working Days once receiving the order.

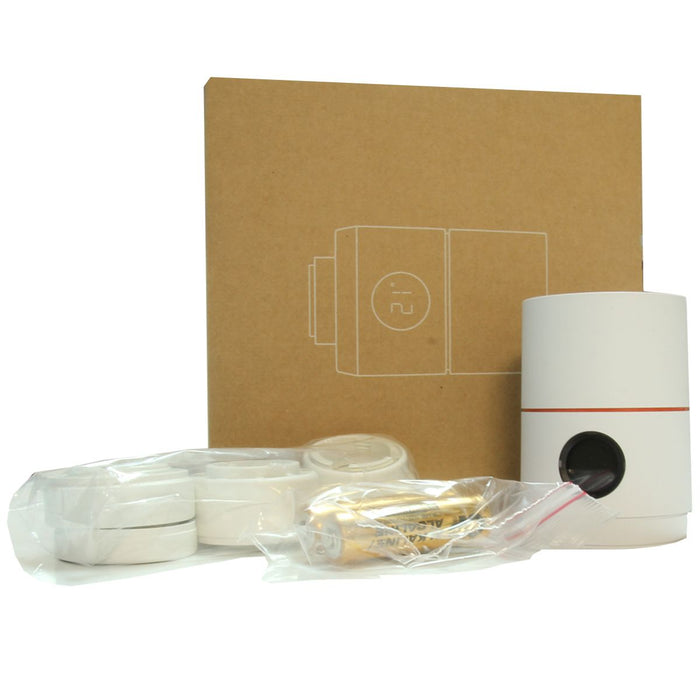

1 x Viessmann radiator thermostat
1 x Adapter Set
1 x Installation Guides
Description:
- Enables easy control of your radiators via the ViCare app
- for individual room control in conjunction with the Vitoconnect OPTO2 internet interface or the new Vitodens gas condensing boilers
- with an integrated temperature sensor for recording the current room temperature
- incl. adapter set for Danfoss thermostatic valve types RA, RAV, RAVL and M30x1.5 mm

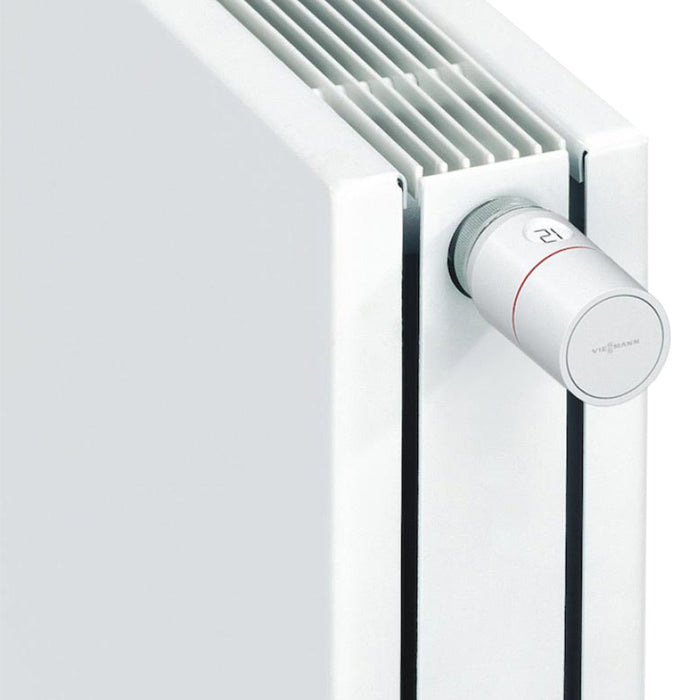

- easy installation via adapter on all common radiators
- the digital display shows temperature values
- Regulation in 0.5 °C steps
- enables individual room control via ViCare
- measures room temperature
- timeless and robust design
- made in Europe
- Note: do not use rechargeable batteries
When do I need a ViCare radiator thermostat:
- A ViCare thermostat, in conjunction with the ViCare app, makes it possible to set the temperature individually for each room
- Time programs for heating and hot water preparation make a significant contribution to saving energy costs
- Due to the direct connection to the heat generator, the fuel consumption and the yields of a solar thermal system are determined particularly precisely and clearly shown on the smartphone display
- several thermostats in a room can be linked together
Technical specifications:
-
Power supply: 2 x 1.5 volt alkaline batteries LR6 type AA (do not use rechargeable batteries)
- Battery life: approx. 2 years
- Noise level at a range of 1 m: < 30 dB(A)
- Radio frequency: 2.4 GHz low power radio 3.0 radio standard
- Frequency band: 2405.0 to 2480.0MHz
- Transmission power max.: 0.1 W (eirp)
- Transmission interval: every 7.5 seconds.
- Control range: +8 °C to +30 °C
- Nominal stroke range: 4.20 mm
- Valve lift: 4.35mm
- Valve positioning force: 70 N

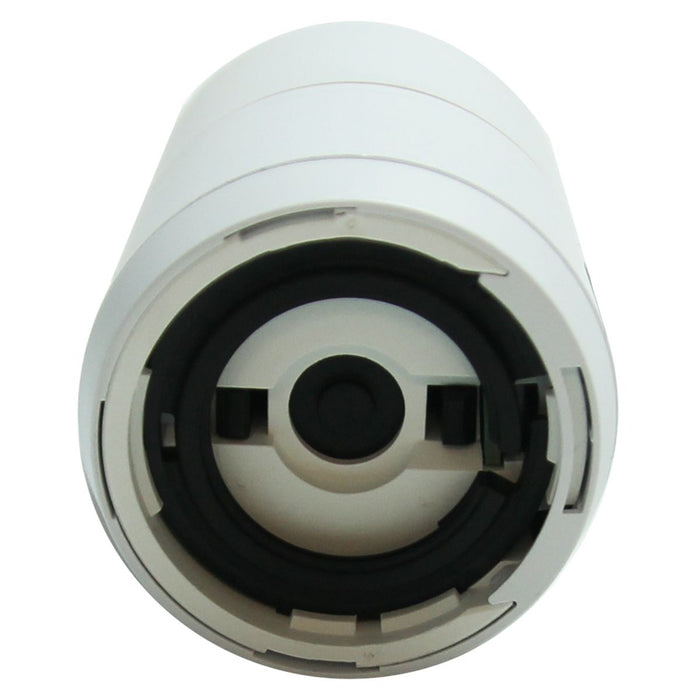

- Connection: M30x1.5 mm adapter for Danfoss RAV, RA, RAVL
- Permissible ambient temperature Operation: 0 °C to +40 °C Use in living and boiler rooms (normal ambient conditions)
- Protection class: III
- Degree of protection: Ensure IP20D according to EN 60529 through construction/installation
- Width: Ø 55mm
- Length: 75mm
- Item no.: ZK03840
